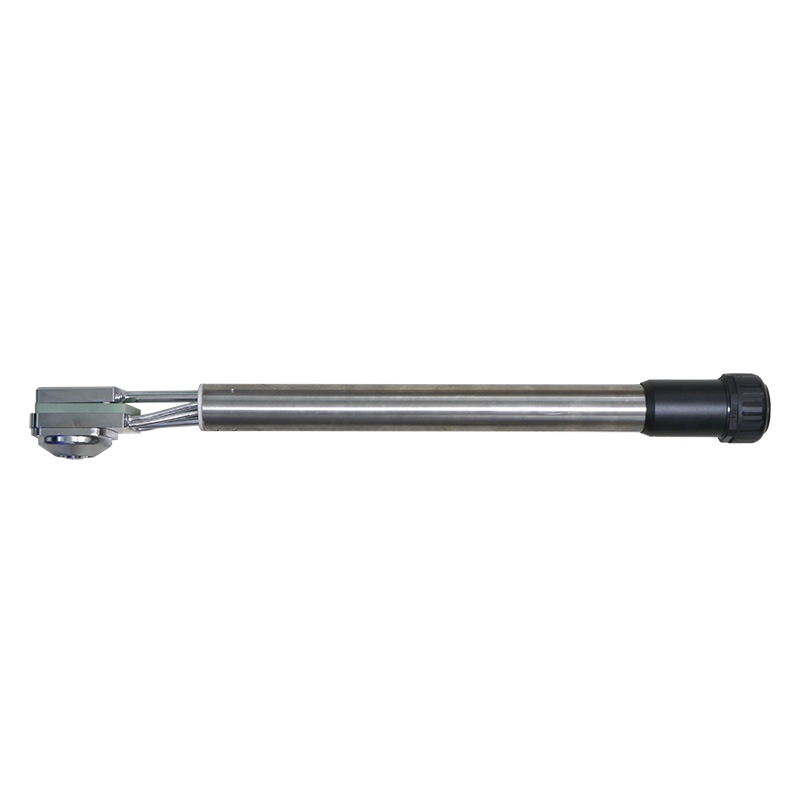

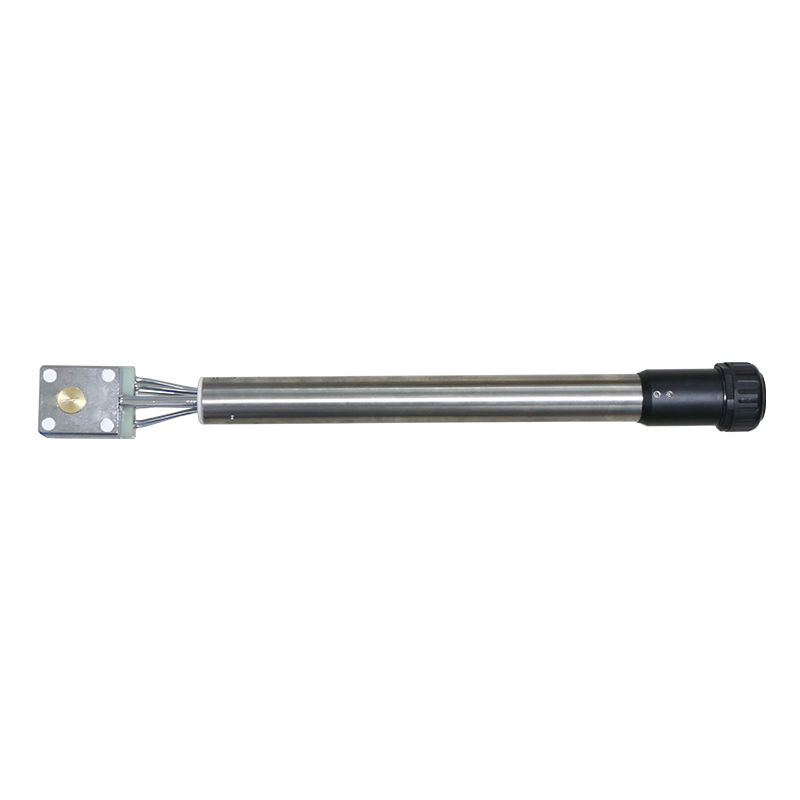

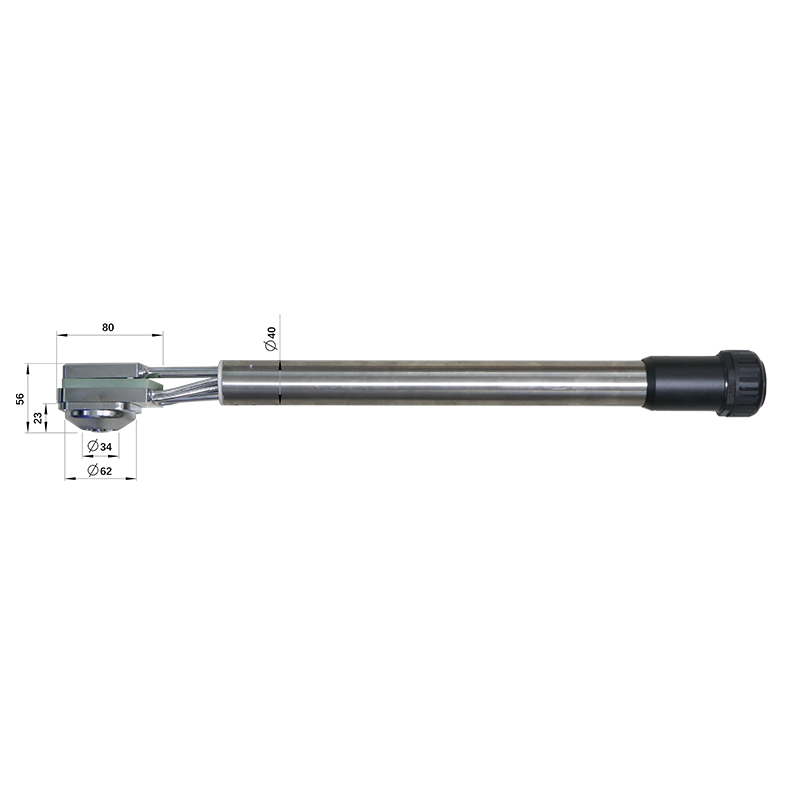

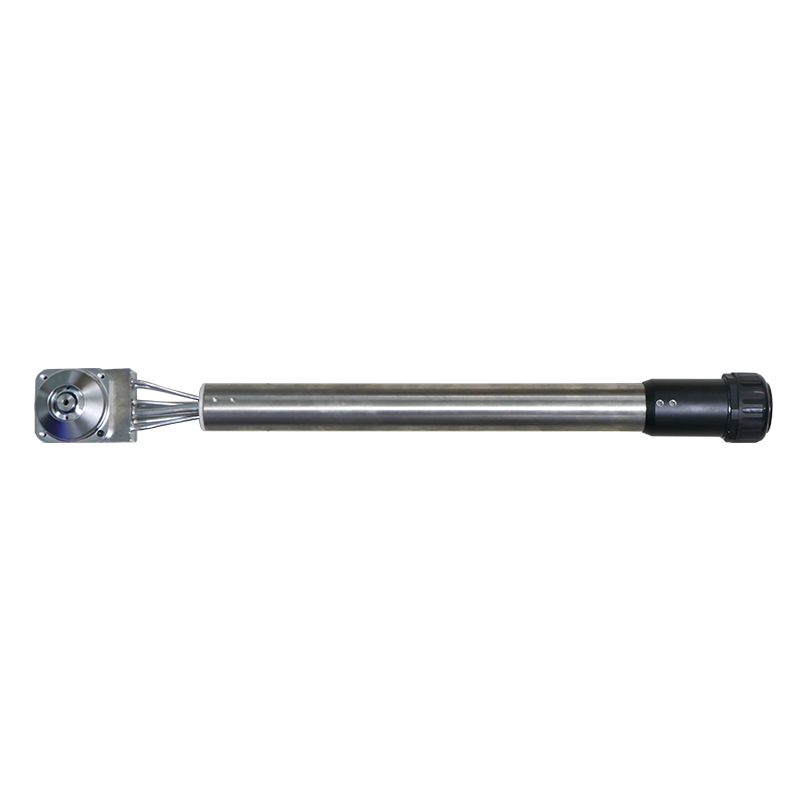

The 500A plasma bore welding torch has the advantages of high current output, compact structure and precise plasma arc control, which can efficiently complete high-quality welding of thick-walled workpieces and small-diameter bores. Its modular design is easy to maintain and quick to replace parts, and it supports both air and water cooling to meet the needs of long-time operation. The torch is highly compatible and can be flexibly integrated into a variety of automation systems, making it an ideal solution for complex structures and precision welding scenarios.
High current output, compact structure and precise plasma arc control for thick-walled workpieces and small-diameter bores.
Modular design for easy maintenance and quick replacement, supporting both air and water cooling systems.
Flexibly integrated into a variety of automation systems for complex structures and precision welding scenarios.
| 500A Plasma Bore Welding Torch | |
| Product Parameters and Models | DNPT50019-HQ |
| Tungsten pole | 8.0mm |
| Current range | 100-450A |
| Copper nozzle cooling method | Direct water cooling |
| Ionized gas | 2.0-5.0L/min |
| Protective gas | 10-20L/min |
| Powder feed gas | 2-6L/min |
| Copper nozzle powder runner | Two way |
| Powder feeding capacity | 0-4KG/h |
| Welding torch return water flow | 5.0L/Min |
| Granularity | 100-270 mesh |

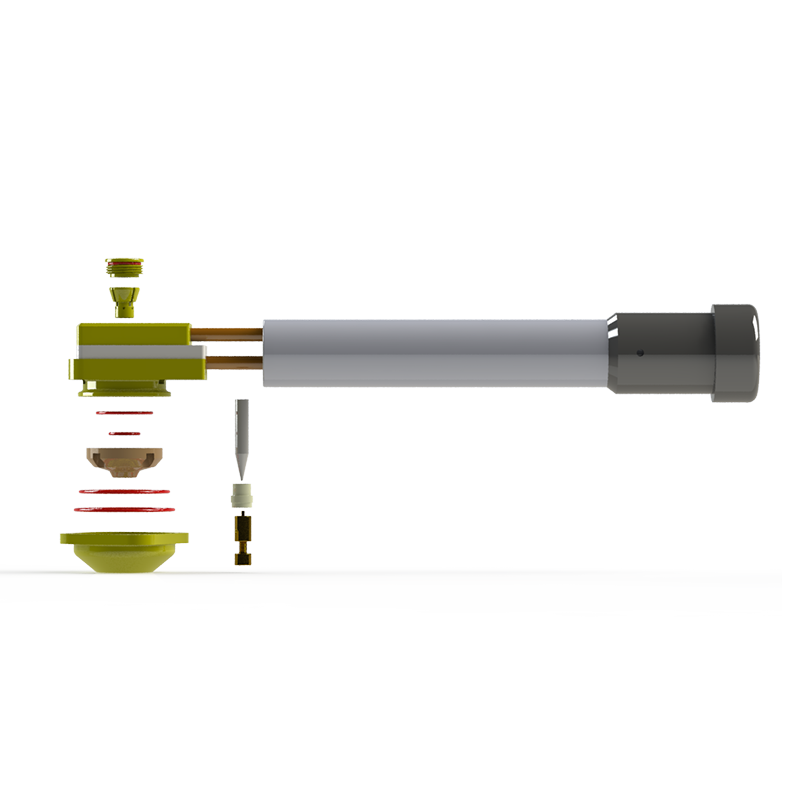

| Serial Number | Product Name | Material Code | Product Dimension |
|---|---|---|---|
| A | 500A plasma bore welding torch (model 19) | D2110000 | / |
| 1 | 500A Bore Copper Rear Cap | D2110500 | 23*11 |
| 2 | 500A Bore Rear Cap Rubber Ring | D2110510 | 22*2 |
| 3 | 500A Bore Tungsten Clamp | D2110300 | 18*18 |
| 4 | 500A bore copper nozzle large rubber ring | D2100700 | 34*1.9 |
| 5 | 500A bore copper nozzle small rubber ring | D2100800 | 19*1.9 |
| 6 | 500A bore copper nozzle | D2110110 | 45*17.5 |
| 7 | 500A bore protector small rubber ring | D2110900 | 54*1.9 |
| 8 | 500A bore protector large rubber ring | D2111000 | 60*1.9 |
| 9 | 500A bore protection cover | D2110600 | 62*24 |
| 10 | 500A bore tungsten needle | D2110400 | 8*48 |
| 11 | 500A Bore Centering Ring | D2110200 | 13*14 |
| 12 | Tungsten pole calibrator (universal) | D2000100 | 10*32 |
The torch features a high current output, a compact structure, and precise plasma arc control. It is designed to efficiently complete high-quality welding on thick-walled workpieces and small-diameter bores.
It supports both air and water cooling to meet the requirements of long-time, continuous operation. The copper nozzle itself uses a direct water cooling method.
Yes, the torch is highly compatible and designed to be flexibly integrated into a variety of automation systems, making it suitable for complex structures and precision welding.
The DNPT50019-HQ model operates within a current range of 100-450A and utilizes an 8.0mm tungsten pole.
The required gas flow rates are: Ionized gas at 2.0-5.0 L/min, Protective gas at 10-20 L/min, and Powder feed gas at 2-6 L/min.
The powder feeding capacity ranges from 0 to 4KG/h, and the recommended powder granularity is between 100 and 270 mesh.
