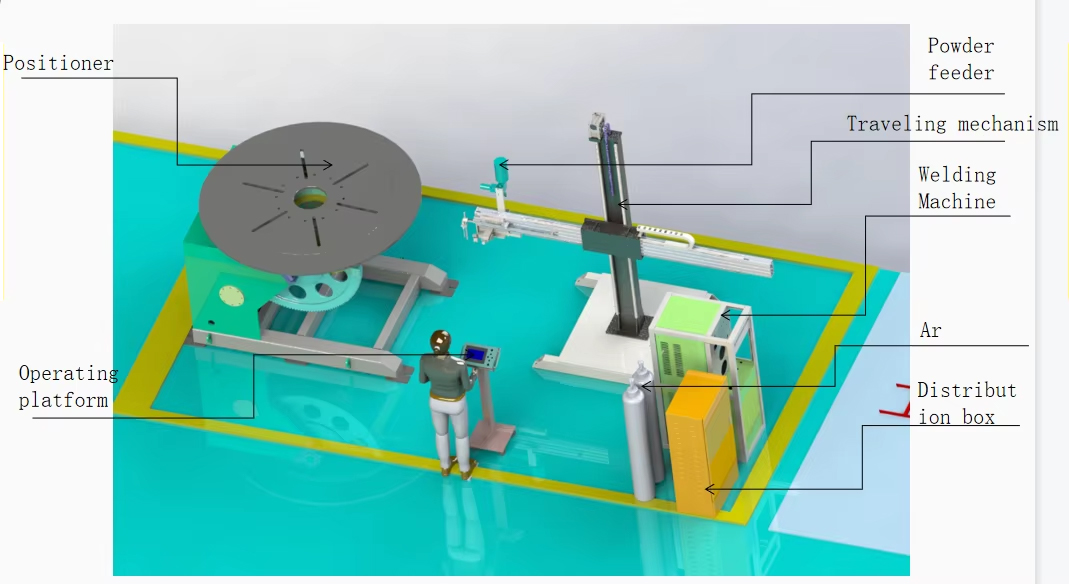

The system adopts PLC control, man-machine interface, simple operation. It can be used for automatic surfacing of all kinds of circular shaft products and disc end products. Only need to input parameters can be one-button operation, welding machine parameters, walking parameters integration. Make the worker simple operation, easy to get started. It is not necessary for workers to have a high level of knowledge.
The alloy powder is continuously supplied by the powder feeder going into PTA welding torch base on gas flow of powder feeding and blown into the arc. During this process, the plasma powder, in a state of molten or semi-molten, is pre-heated in the arc column, and then it sprays into the molten pool of work piece, where it is fully melted and discharges gas and slag.

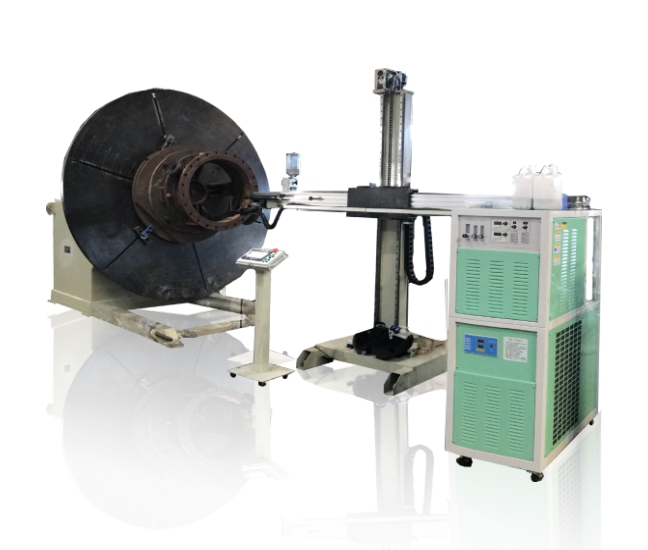

HV1700 welding manipulator adopts imported linear guide rail, precision worm gear reducer and stepping motor to drive, with small transmission clearance, high rigidity, stable and reliable operation and convenient integration.
Hbt-3 through-hole welding positioner has unique middle through-hole design and hand-operated overturning positioner, which is suitable for overlaying welding of inner and outer surfaces of various super long shaft parts. It is equipped with servo motor driving slewing bearing to realize precision transmission of spindle, with small clearance, high rotation accuracy and convenient control.
A: The system is designed for the automatic surfacing of all kinds of circular shaft products and disc end products.
A: No, it is not. The system features a simple-to-operate PLC control and man-machine interface. Once parameters are input, it functions with one-button operation, requiring no high-level knowledge from the operator.
A: The powder feeder continuously supplies alloy powder based on gas flow into the PTA welding torch, blowing it into the arc. The molten or semi-molten plasma powder is pre-heated in the arc column and sprayed into the workpiece's molten pool where it fully melts, discharging gas and slag.
A: The HV1700 welding manipulator is driven by an imported linear guide rail, a precision worm gear reducer, and a stepping motor, ensuring small transmission clearance and high rigidity.
A: It features a unique middle through-hole design and a hand-operated overturning positioner, making it ideal for overlaying welding of both inner and outer surfaces of super long shaft parts.
A: It is equipped with a servo motor driving a slewing bearing to realize precision transmission of the spindle, offering small clearance and convenient control.
