High-Quality DYY-LC501 Hydraulic rod automatic plasma cladding machine Suppliers, Factories
1 / 3
High-Quality DYY-LC501 Hydraulic rod automatic plasma cladding machine Suppliers, Factories

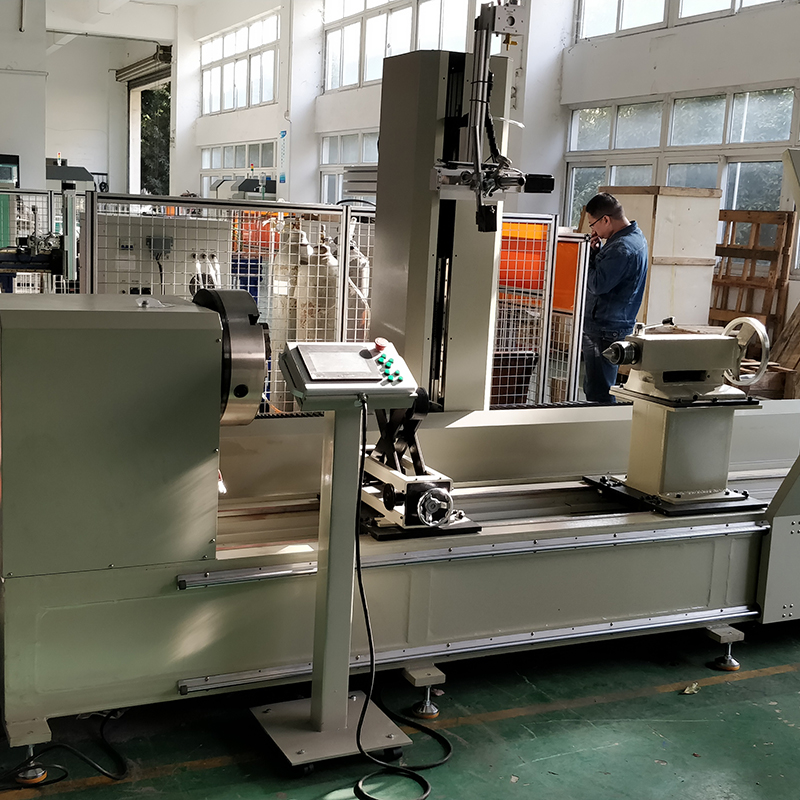

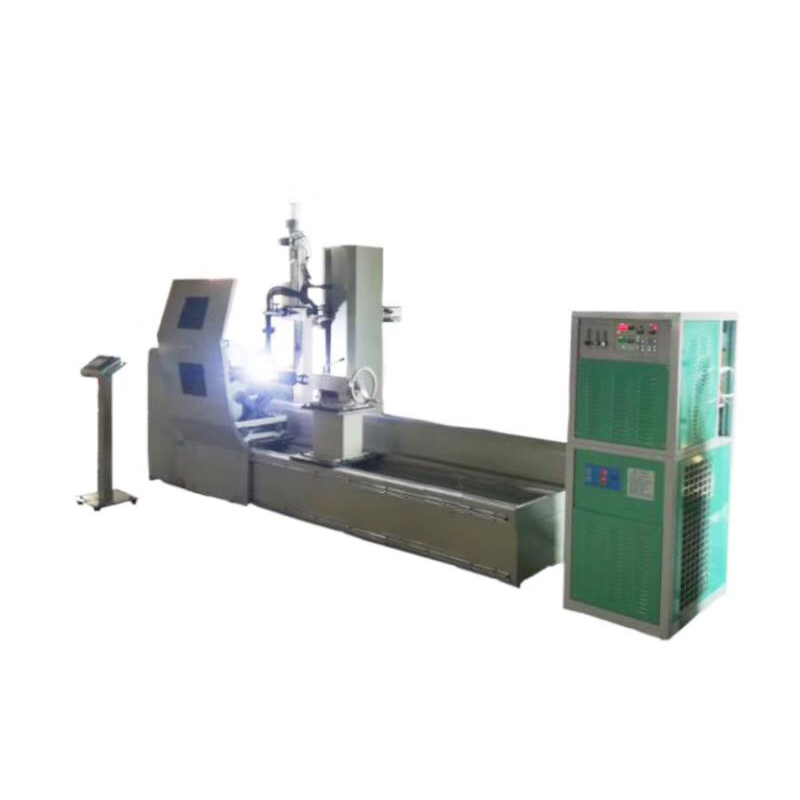

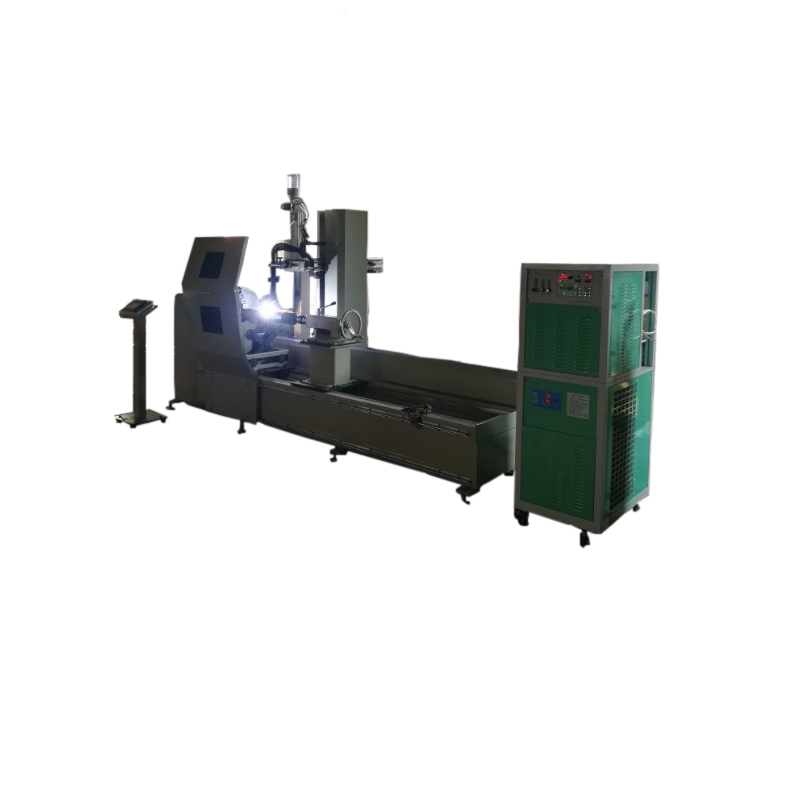

The machine is driven by imported linear guide, precision worm gear reducer and stepping motor, with small transmission clearance, high rigidity, stable and reliable operation and convenient integration.
The machine is driven by imported linear guide, precision worm gear reducer and stepping motor, with small transmission clearance, high rigidity, stable and reliable operation and convenient integration.
Head integrated design, with adjustable roller carrier, thimble tailstock, to ensure the concentricity of the workpiece and the overall load.
It is suitable for surfacing the outer circle and inner hole of general shaft parts and pipe parts. It can also be used for surfacing and repairing of screw, centralizer and other parts.
Technical Specifications & Configuration
Configuration items
Model and brand
Description of main parameters
Axial displacement
Research and control stepping motor
Effective stroke 2100mm
Lifting mechanism
Research and control stepping motor
Effective stroke 600 mm
Telescopic beam
Research and control stepping motor
Effective stroke 450mm
Spindle motor
Xinjie servo motor
The rotation speed is 0.01r/min ~ 2.5r/min
Rotating spindle
DXZ-10
Rated load 1000 kg
Rotating spindle (Chuck)
Chuck
The clamping range of k11-400c is 25-400 mm
touch screen
Wellington
7-inch screen tk6071iq
Arc voltage tracking
Integrated system
-
Current communication
485 communication
-
Adjustable tug frame
TLX-06
Rated load 600 kg
Thimble tailstock
C6140A
Rated load 1000 kg
Welding wiggler
GCH6A-100
Swing speed 1-90 mm / S, The swing distance is 3-50 mm
Console
Control platform
Mobile control platform, handheld touch control box
Reference footprint
-
Length 4500 mm, width 2500 mm, height 2000 mm
Frequently Asked Questions
Q
What components drive the motion and operation of this machine?
The machine is driven by an imported linear guide, a precision worm gear reducer, and a stepping motor, ensuring small transmission clearance, high rigidity, and stable operation.
Q
How does the design ensure the concentricity of the workpiece?
Concentricity and overall load capacity are secured through a head integrated design equipped with an adjustable roller carrier and a thimble tailstock.
Q
What applications and parts is this equipment suitable for?
It is ideal for surfacing the outer circle and inner hole of general shaft and pipe parts, as well as the surfacing and repairing of screws, centralizers, and similar components.
Q
What are the dimensions and reference footprint of the machine?
The reference footprint dimensions are 4500 mm in length, 2500 mm in width, and 2000 mm in height.
Q
What is the effective stroke range for the axis displacements?
The axial displacement features an effective stroke of 2100 mm, the lifting mechanism has an effective stroke of 600 mm, and the telescopic beam provides an effective stroke of 450 mm.
Q
What is the clamping range and rated load of the rotating spindle assembly?
The rotating spindle has a rated load capacity of 1000 kg, and the integrated chuck has a clamping range of 25 to 400 mm.
