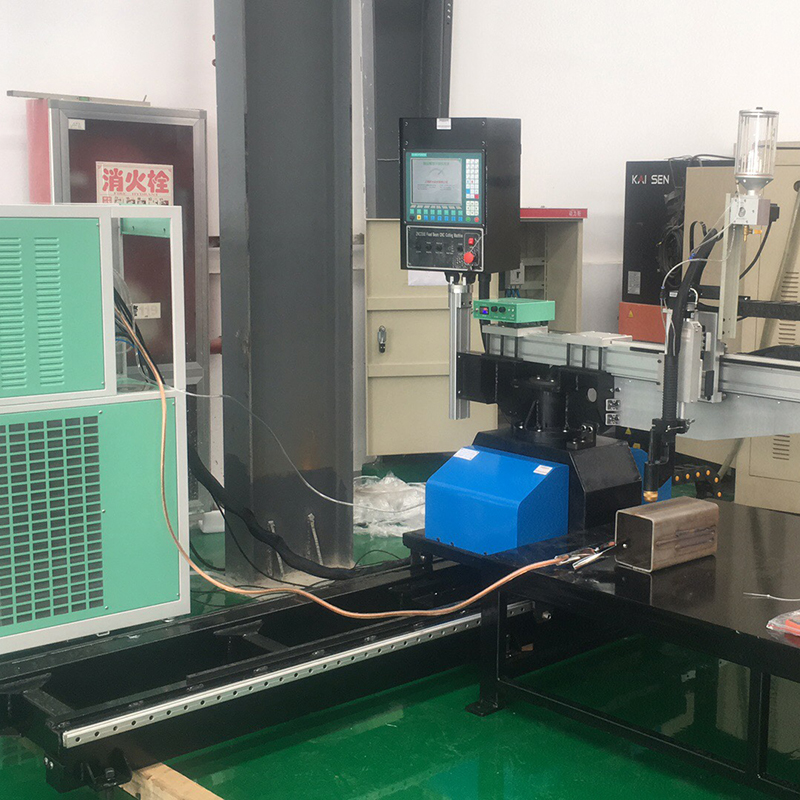

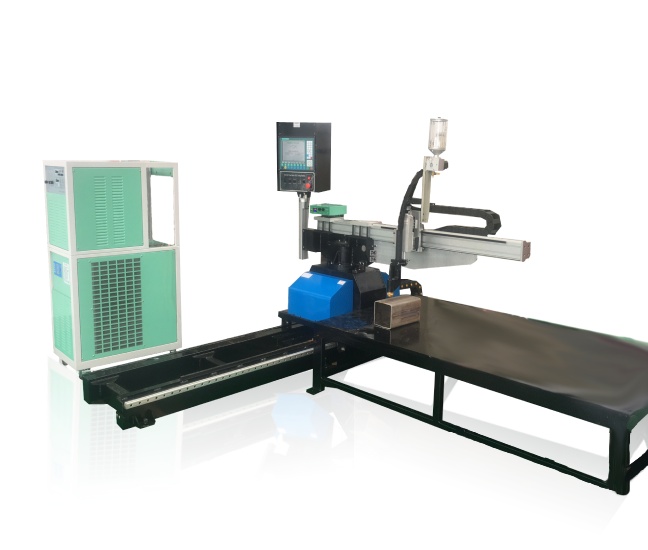

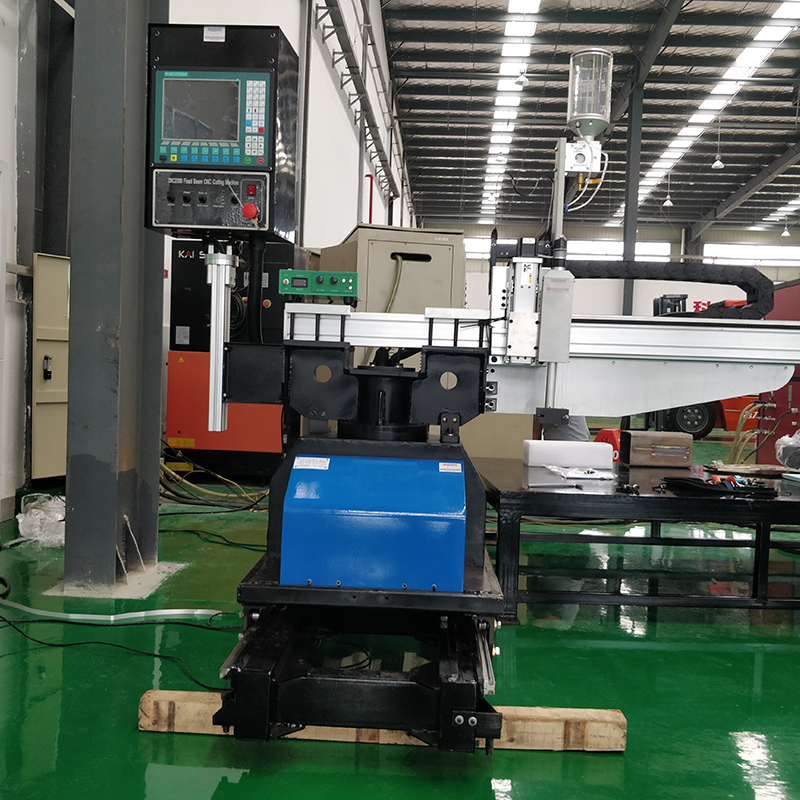

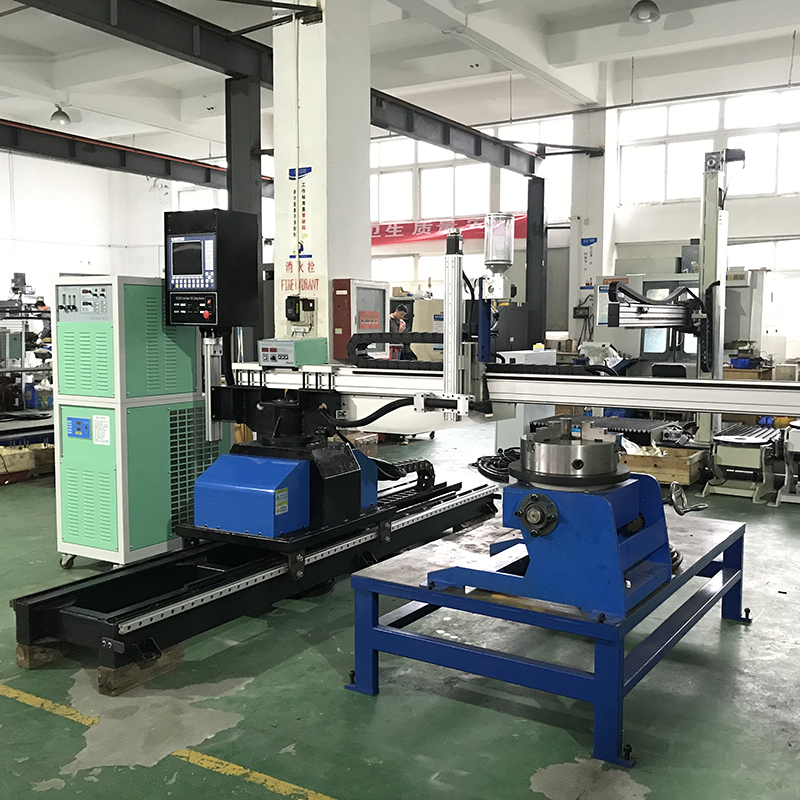

High-Quality DXB-NC301 Cantilever plasma surfacing system Manufacturer, Supplier
High-Quality DXB-NC301 Cantilever plasma surfacing system Manufacturer, Supplier
High-Quality DXB-NC301 Cantilever plasma surfacing system Manufacturer, Supplier
High-Quality DXB-NC301 Cantilever plasma surfacing system Manufacturer, Supplier
1 / 4
High-Quality DXB-NC301 Cantilever plasma surfacing system Manufacturer, Supplier
High-Quality DXB-NC301 Cantilever plasma surfacing system Manufacturer, Supplier
High-Quality DXB-NC301 Cantilever plasma surfacing system Manufacturer, Supplier
High-Quality DXB-NC301 Cantilever plasma surfacing system Manufacturer, Supplier

High-Quality DXB-NC301 Cantilever plasma surfacing system Manufacturer, Supplier

The walking mechanism is driven by imported linear guide rail, precision worm gear reducer and stepping motor, with small transmission clearance, high rigidity, stable and reliable operation and convenient integration.
Send Inquiry

Product Description

Walking Mechanism
Driven by imported linear guide rail, precision worm gear reducer, and stepping motor. Offers small transmission clearance, high rigidity, stable and reliable operation, and convenient integration.
High Automation
High degree of automation, ensuring seamless welding process automation.
Metallurgical Bonding
The alloy layer features metallurgical bonding with the workpiece substrate, providing high bonding strength.
Fast & Low Dilution
The surfacing speed is fast and the dilution rate is low. The dilution ratio of powder plasma arc surfacing can be controlled within 5% - 10% or less.
Compact & Efficient
The surfacing layer has a compact structure and beautiful appearance. The process is easy to realize efficient automatic production, improving labor productivity and reducing labor intensity.
Plane Applications
Perfectly suitable for surfacing and surface repair of plane products.

Configuration Specification

Configuration items Model and brand Description of main parameters
Transverse fixed arm suspension beam Research and control stepping motor Effective stroke 1900mm
Welding torch lifting mechanism Research and control stepping motor Effective stroke 150 mm
Walking base Research and control stepping motor Effective stroke 2300mm
Arc voltage tracking Multi wood integration
Current communication 485 communication
Working platform customized
Console Two axis CNC system programming, equipped with hand-held button control box.
Reference footprint It is 3600 mm long, 3400 mm wide and 1900 mm high.

Frequently Asked Questions

What drives the walking mechanism of this machine?
The walking mechanism is driven by an imported linear guide rail, a precision worm gear reducer, and a stepping motor, ensuring small transmission clearance, high rigidity, and stable operation.
How is the bonding strength of the surfacing layer?
The alloy layer achieves metallurgical bonding with the workpiece substrate, which guarantees a high bonding strength.
What is the dilution rate for the powder plasma arc surfacing?
The surfacing speed is fast and the dilution rate is low. The dilution ratio of powder plasma arc surfacing can be controlled within 5% - 10% or less.
What types of products are suitable for this system?
This equipment is suitable for the surfacing and surface repair of various plane products.
What control and programming options are available?
It features a two axis CNC system programming interface and is equipped with a convenient hand-held button control box.
What is the reference footprint of the machinery?
The reference footprint is 3600 mm long, 3400 mm wide, and 1900 mm high.
